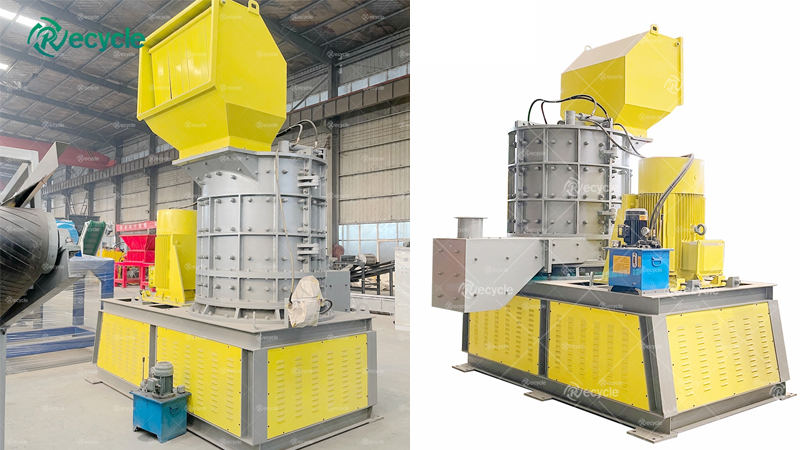

Hammer Metal Crusher Machine
E-mail: recyclemachinehall@gmail.com
Overview
Hammer metal crusher machine is an impact rotor crusher with a hammer. It can crush various scrap metals, cables, cans, etc. into agglomerated particles, thereby reducing transportation costs and increasing the speed of reprocessing.
Advantage

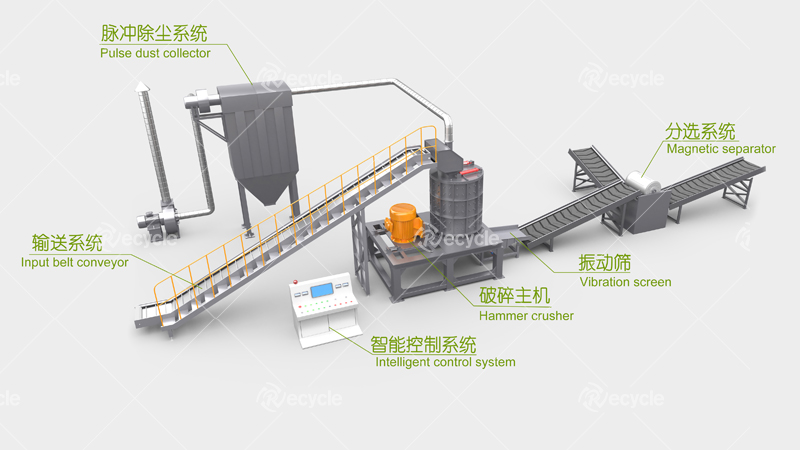

Raw material→Final Product
Advantage Of The Hammer metal crusher machine
1. Multi-stage crushing to improve crushing efficiency: The equipment uses the triple crushing effects of hammer impact, crushing plate counterattack, and screen grinding to ensure that the material is fully crushed, the discharge is uniform, and the efficiency is higher.
2. Controllable discharge and adjustable particle size: By replacing screens of different specifications, different discharge particle size requirements can be achieved to meet customers' diverse requirements for terminal product sizes.
3. Compact structure and stable operation: The rotor hammer has a scientific layout, the body structure is solid and compact, effectively reduces vibration and noise, runs smoothly and reliably, and is suitable for continuous operation.
4. Wide range of applications, all-round metal crushing: It can efficiently crush a variety of scrap metals, cables, cans, etc., and is widely used in renewable resource recycling, scrap metal processing and other industries.
5. The pellets are well formed, which is convenient for transportation and reprocessing: the output material is in the form of pellets, which is not only convenient for packaging and transportation, but also can be directly put into the next step of smelting or recycling, greatly improving production efficiency.
Technical Parameters
Model | ZY1000 | ZY1200 | ZY1500 |
Capacity(kg/h) | 800-1000 | 1500-2000 | 2000-3000 |
Power(kw) | 75kw*2 | 90kw*2 | 132kw*2 |
Spindle speed(rpm) | 650 | 650 | 672 |
Rotating diameter(mm) | 1000mm | 1500mm | 1500mm |
Number of hammers | 2pcs | 4pcs | 2pcs |
Unit weight of hammer head | 20kg | 25kg | 30kg |
Number of Hobs | 36pcs | 36pcs | 36pcs |
Unit weight of hob | 40kg | 40kg | 42kg |
kicking device | Active type | Active type | Active type |
Power of hydraulic station | 2.2kw | 2.2kw | 2.2kw |
Hammer head material | High manganese alloy steel | High manganese alloy steel | High manganese alloy steel |
Equipment weight(tons) | 9t | 12t | 18t |
Equipment size(mm) | 1200* 1200*3000 | 1500* 1500*3200 | 1800* 1800*3500 |
