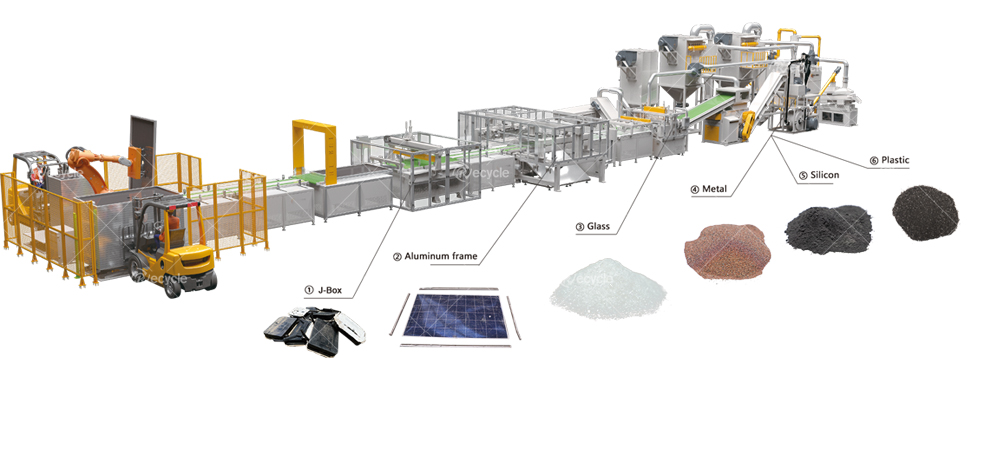

The Solar Panel Crushing & Recycling Solution is a fully automated, high-efficiency production line designed for the comprehensive recovery of decommissioned and scrap photovoltaic modules. Utilizing advanced mechanical delamination, intelligent frame removal, and multistage crushing and sorting technologies, this system achieves closed-loop recycling for high-value components.

Integrated with optional 3D visual scanning and robotic loading, the plant efficiently separates aluminum alloy frames, tempered glass, high-purity copper/metals, high-grade silicon, and EVA plastics without chemical contamination, offering solar module recyclers an eco-friendly and economically viable solution.

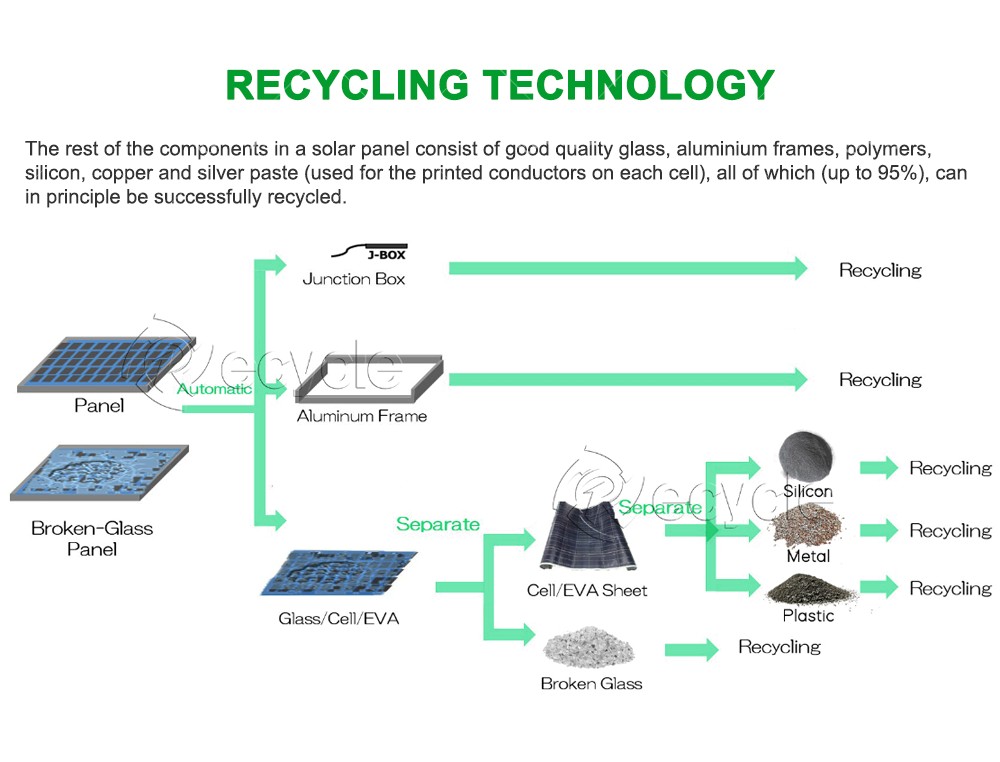

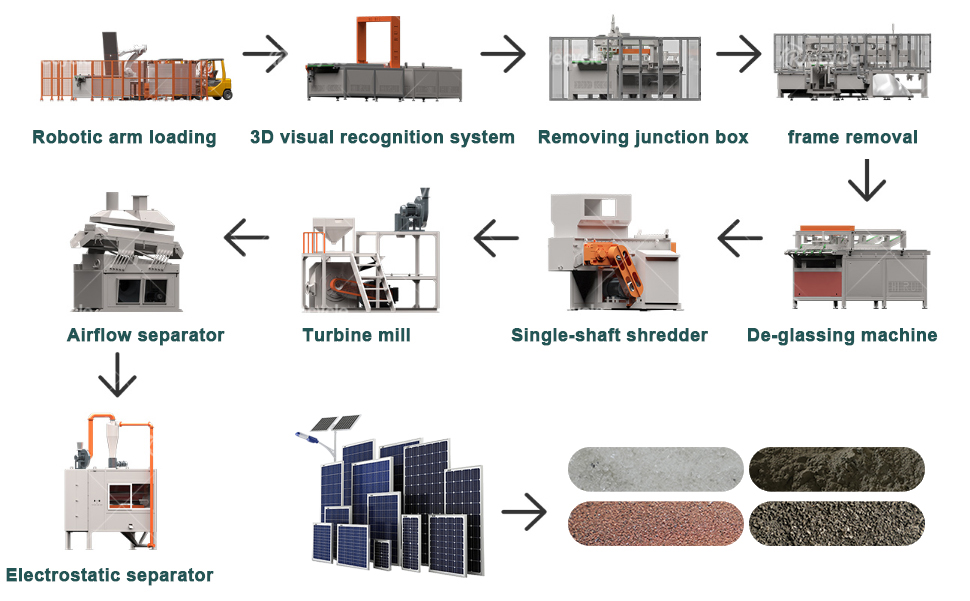

Solar Panel Recycle Machine Process

• Step 1: Automated Feeding & 3D Recognition – Waste PV panels are continuously fed onto the conveyor. An integrated 3D line-scan system automatically detects panel dimensions and junction box positioning for precise automated handling.

• Step 2: Intelligent Frame Removal – High-precision deframing mechanisms strip aluminum frames automatically without damaging internal materials, achieving immediate recovery of high-value metal.

• Step 3: Glass Delamination & Separation – Mechanical delamination gently separates the surface tempered glass from the encapsulated laminate while stripping EVA bonding layers cleanly.

• Step 4: Shredding, Crushing & Fine Grinding – Internal laminate structures are sequentially processed through a heavy-duty single-shaft shredder and high-speed fine grinder to achieve optimal particle sizing.

• Step 5: Multi-Stage Air & Electrostatic Sorting – Materials pass through airflow classifiers, vibrating screens, and electrostatic separators to separate plastics, copper particles, and silicon dust.

• Step 6: High-Purity Material Output – Ready-to-sell sorted materials: clean aluminum, cullet glass, copper particles, purified silicon powder, and plastic fractions.

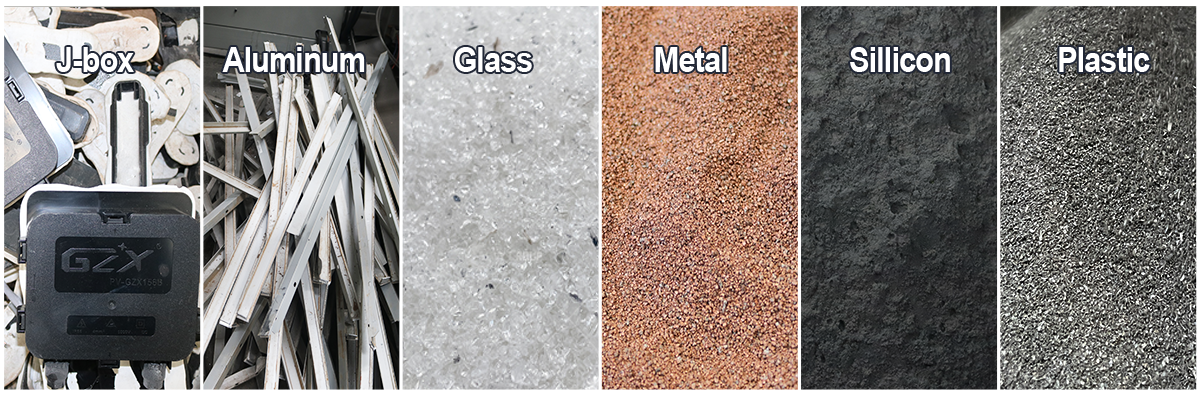

Waste solar panel recycling plant  final product：

• Aluminum frame removal rate ≥ 99%, recycling purity ≥ 98%.
• Glass removal rate 90-98%, recycling purity ≥ 95%.
• Metal particle (copper) recovery rate ≥ 95%, recycling purity ≥ 95%.
• Plastic powder recovery rate ≥ 95%, recycling purity ≥ 90%.
• Silicon recovery rate 95%, appears in the form of a mixture of plastic powder, glass powder, etc., with a silicon content of about 60%.

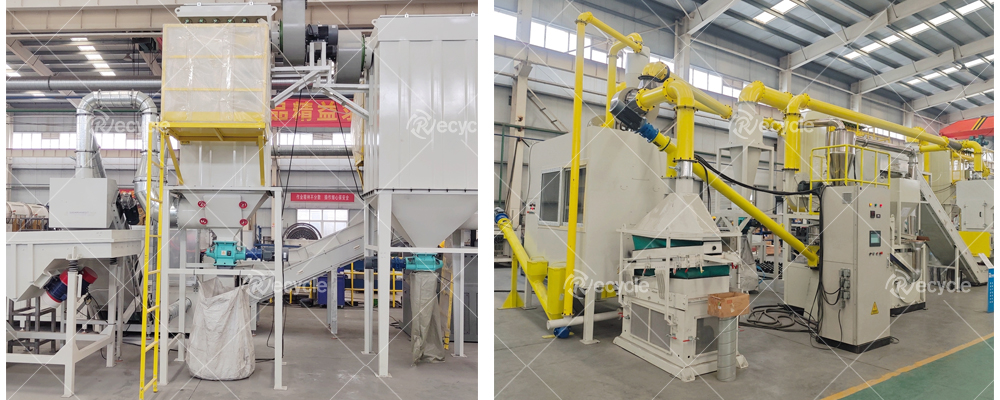

Solar panel recycling plant product features

• It can be equipped with robot loading. The robot can participate in the loading and handling of photovoltaic panels. It can realize the automatic loading of the whole pallet of regular photovoltaic panels by a robot in the designated area, reducing the manual participation process.
• It can add 3D line scanning modeling to identify the external and glue box features of photovoltaic panels, guide the equipment to remove the glue box, remove the frame, and link related actions, so as to achieve automatic adaptation of boards of different specifications and reduce manual participation.
• The new version of the glue box removal scraper has a wider coverage range, and can automatically identify the vertical, horizontal, single glue box, and three glue boxes (if other glue boxes are required, you can inform in advance), automatically adjust the scraper direction, and no manual participation is required during the operation process.

Frequently Asked Questions

• Q: What panel types and sizes can it process?

  A: Monocrystalline, polycrystalline, and thin-film panels (intact or broken). The 3D scanning system automatically adapts to standard 60/72-cell and large-format (182/210mm) modules without manual adjustments.

• Q: Does it require manual junction box removal?

  A: No. An intelligent multi-angle scraper automatically identifies and strips single, vertical, or split triple junction boxes.

• Q: Does glass delamination produce high-purity cullet?

  A: Yes. Dry mechanical delamination separates tempered glass with up to 95% purity, ready for direct furnace resale without chemical cleaning.

• Q: What high-value materials are recovered?

  A: Aluminum frames (≥98% purity), clean cullet glass (≥95%), copper granules (≥95%), silicon powder, and reusable polymer fractions.

• Q: Do emissions comply with standards if pyrolysis is used?

  A: Yes. Integrated thermal units include multi-stage flue gas treatment (secondary combustion, activated carbon, and baghouse filtration) compliant with the EU Industrial Emissions Directive (IED 2010/75/EU). Mechanical sorting lines use pulse-jet baghouses to meet international dust limits.

• Q: Which certifications are provided for EU compliance?

  A: Fully certified under CE (Machinery Directive, LVD, EMC) and ISO 9001 / ISO 14001, with a complete EU declaration of conformity and technical files provided for local permitting.
