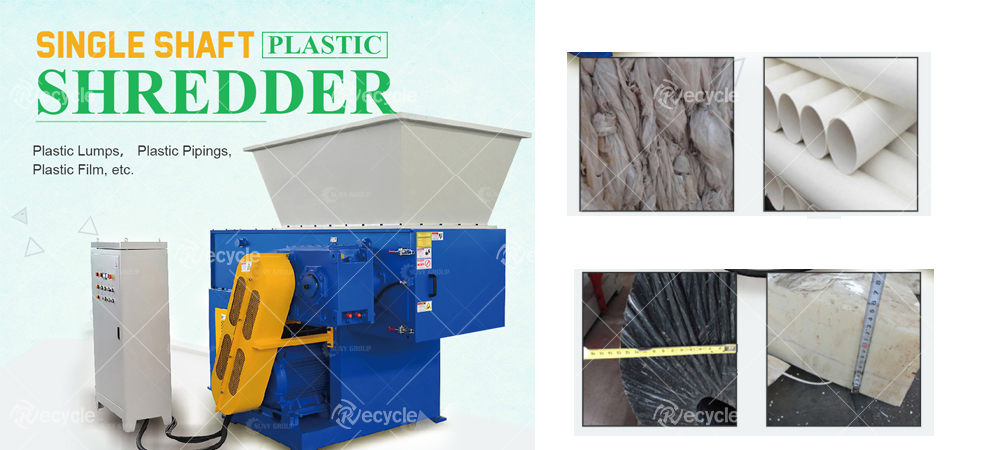

The single-shaft shredder is mainly composed of a blade spindle, a fixed blade, a bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system. It is suitable for recycling plastics, paper, wood, fiber, rubber, and domestic waste, etc. There are many types of recyclable materials. Various feeding hoppers can be provided according to customer needs. The equipment has a low-speed blade, low noise, and is more energy-efficient.

Process:

1. The blade is made of cold-working die steel, with good blade strength, high toughness, and high cutting performance. The blade has four cutting edges and can be rotated 90° for continued use after wear.
2. The external bearing design is waterproof and dustproof, extending the service life of the bearing.

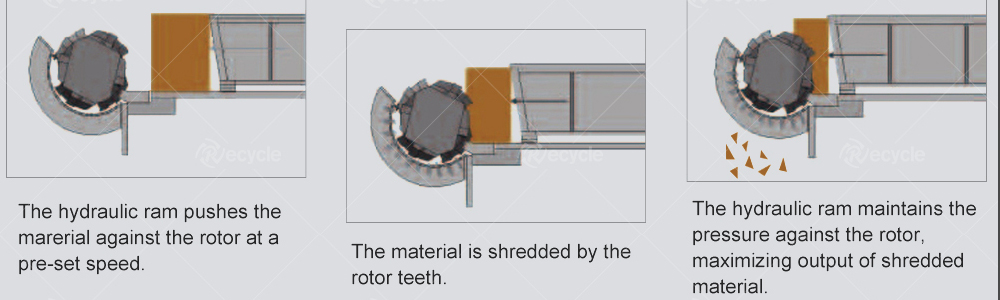

3. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion.
4. Hardened gear reducer, high transmission efficiency, strong load-bearing capacity, and low noise.

Application
