ACSR Wire Recycle Systems
Application: aluminium-conductor steel-reinforced cable of various sizes.
Consists: ACSR cable cutter and aluminum steel separator. The final aluminum and iron length is 2cm.
E-mail: recyclemachinehall@gmail.com
Overview

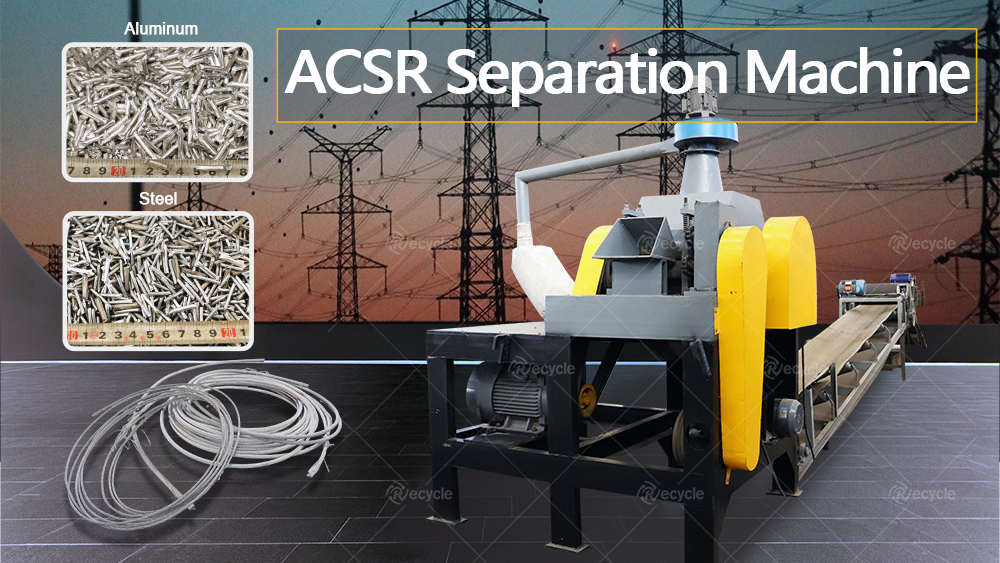

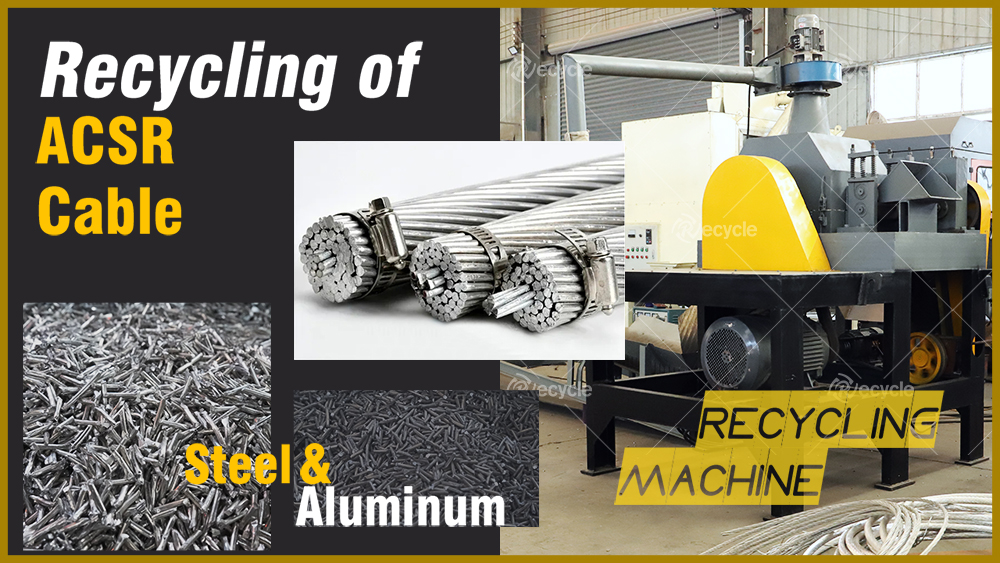

ACSR (Aluminum Conductor Steel Reinforced) wire processing system is a device specially designed for recycling and processing ACSR wires. It can process waste ACSR wires at a high speed of 50m/min. It has the characteristics of high efficiency.
After crushing, sorting and recycling, two metal resources of aluminum and steel are obtained.
Features
- High separation rate: The separation rate is as high as 99%, which can effectively separate aluminum and steel
- Function: The main function is to crush ACSR and separate aluminum and steel to achieve effective recycling of materials
- Intelligent control: The system program remote monitoring and transmission system realizes remote monitoring and information transmission functions
- After-sales service: Provide comprehensive after-sales service and provide CE certification for all
Machine Details
Technical Parameters
| Name | Specification |
| Power | 18.5kw+3kw+0.75kw |
| Inlet | φ200mm (can feed multiple strands) |
| Feed diameter | φ100mm |
| Fixed knife | 1 piece (Material H13) |
| Reducer | Dedicated 3-speed transmission |
| Maximum processing speed | 50 m/min |
| Sorting rate | 99% |
| Cut off length | 10mm,20mm,50mm |
