Multi-functional Waste Wire Stripping Machine
- Raw Materials:2mm~120mm Scarp Copper Wire
- Final Products:Pure Copper Wire, Cable Sheath
E-mail: recyclemachinehall@gmail.com
Overview
The wire stripping machine adopts an all-steel integrated frame structure, which is sturdy and durable. It can be widely used in disassembling household wires, power cables, communication lines, automotive lines, etc. The multi-specification wire entry hole design meets the needs of stripping cables of different thicknesses, does not damage the copper core, strips cleanly, and outputs smoothly.

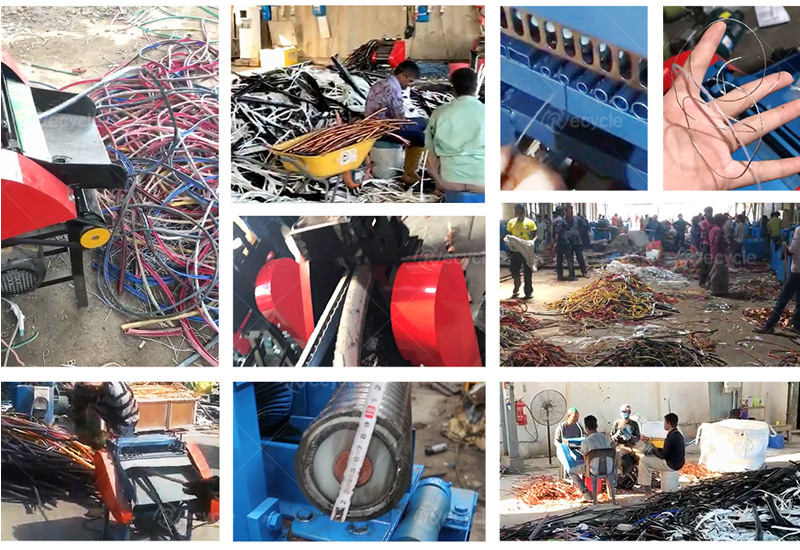

Working process
Advantage
More Advantage For Waste Wire Stripping Machine
- Multiple knife positions + adjustable roller design, one machine for multiple uses; can strip wires and cables with diameters from 2mm-120mm;
- Equipped with high-efficiency motor, stable operation, low energy consumption; the knife is made of alloy material, wear-resistant and long life;
- High copper wire recovery rate and low breakage rate: can effectively protect the integrity of the metal wire core and increase the selling value;
- Support customization: from manual to fully automatic, to meet different production scales and needs
Technical Parameters
Model | Power (Kw) | Weight (Kg) | Capacity (Kg/H) | Dimension (m) |
ZY-TMJ200 | 28 | 1850 | 100-200 | 2.2*2*2.3 |
ZY-TMJ300 | 39 | 2500 | 200-300 | 3.2*2.1*2.3 |
ZY-TMJ400 | 45 | 3200 | 300-400 | 4*2.1*2.5 |
ZY-TMJ500 | 68 | 3850 | 400-500 | 6.2*5*3.3 |
ZY-TMJ800 | 75 | 5500 | 700-800 | 10.4*2.1*3.3 |
ZY-TMJ1000 | 95 | 8200 | 800-1000 | 12*4.1*4.5 |
