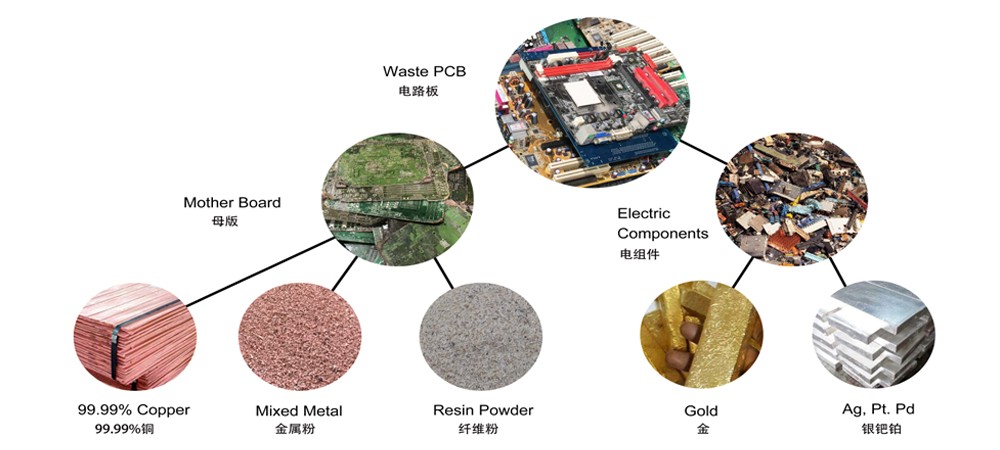

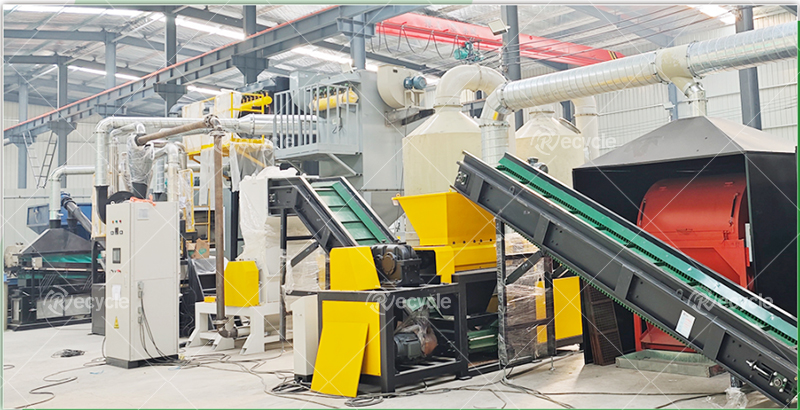

waste pcb recycling plant used for waste circuit board motherboard,copper-clad boards,circuit boards,and the separation of leftover material of the mixed metal and nonmetal materials.

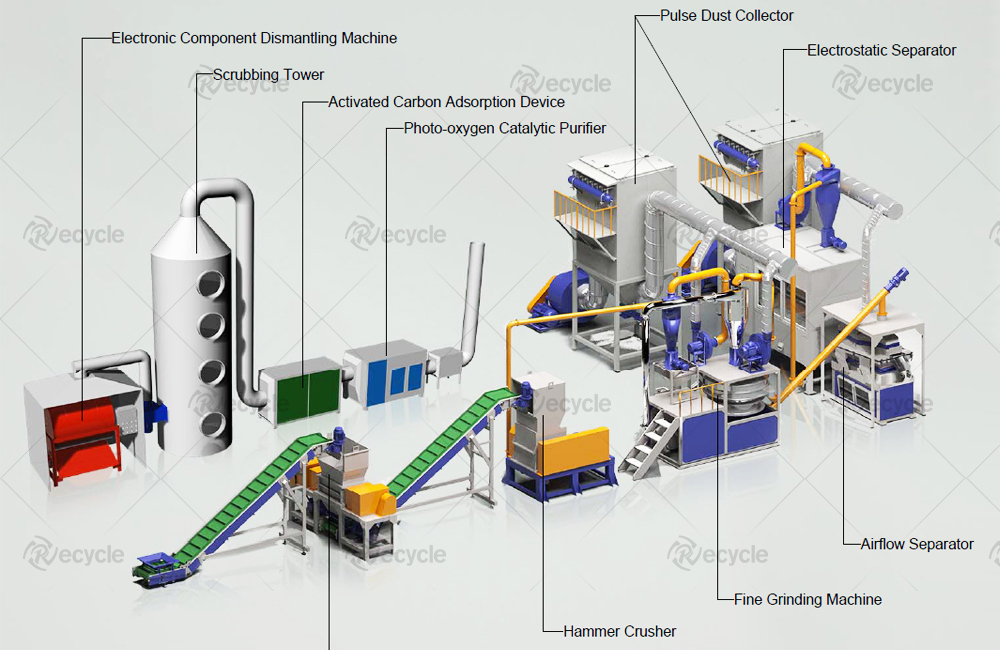

More details of The Waste Pcb Recycling Machine:

Crushing system: A multi-stage crushing method is adopted to first coarsely crush the large pieces of circuit boards, so that the metal and non-metal components therein are fully dissociated.

Magnetic separation system: The magnetic field is used to separate the magnetic metals (such as iron) in the crushed materials, so as to achieve the preliminary separation of magnetic metals and non-magnetic materials.

Eddy current separation system: The eddy current separator generates a high-frequency alternating magnetic field, thereby achieving further separation of metals and non-metals.

Wind separation system: non-metallic materials such as lightweight plastics are separated from heavier metal materials, further improving the separation accuracy.

Electrostatic separation system: thereby achieving efficient separation of metals and non-metals, and obtaining high-purity metal and non-metal products.

Dust removal system: water bath dust removal technology to effectively capture and filter dust, ensure the cleanliness of the working environment, and make the emitted gas meet environmental protection standards.

Feature of the Waste Pcb recycling plant:

• Sorting efficiency: The metal recovery rate is as high as 99%, and the processing capacity can reach 1 ton per hour.
• Energy saving and environmental protection: low unit energy consumption, no noise, no wastewater and waste gas emissions
• Intelligent control: fully automatic assembly line design, reducing manual intervention, equipped with PLC automatic control system to ensure process stability.
• Wide range of applications: compatible with computer boards, TV boards, complex circuit boards containing capacitors and other electronic waste.
