Solar Panel Deframing Machine: High-Speed Aluminum Extraction Systems

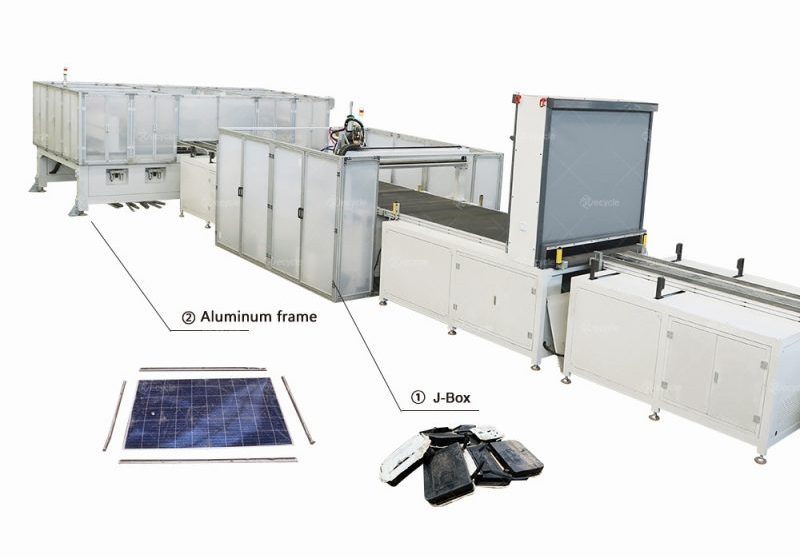

The peripheral aluminum frame of a solar module provides structural rigidity against wind and snow loads, bonded to the glass laminate using high-performance silicone adhesives or polyurethane tapes. Removing these extrusions by hand using pry bars is dangerous, labor-intensive, and leads to jagged glass breakages that jam automated conveyors. A dedicated solar panel deframing machine automates this extraction step, stripping all four structural sides in a rapid, continuous cycle.

Dual-Axis Hydraulic Wedge Mechanics

Industrial deframers use heavy-duty hydraulic or servo-electric systems to break the adhesive bond without shattering the central panel body:

• Automatic Positioning and Center Clamping: The panel is fed horizontally onto a heavy support bed. Central pneumatic clamps apply downward pressure across the laminate face, preventing vertical buckling while the structural edges are addressed.

• Hydraulic Splitting Wedges: Hardened tool-steel wedge blades drive horizontally between the inner edge of the aluminum extrusion and the glass boundary. The wedges cut through the vulcanized silicone sealant along both the X and Y axes.

• Synchronized Outward Pulling Cylinders: Opposed hydraulic cylinders engage the outer lip of the frame. Working simultaneously, they pull outward at pressures reaching 10 to 15 tons, cleanly detaching the long and short aluminum rails from their internal corner keys without shearing the fragile glass core.

Impact on Operating Margins and Blade Longevity

Aluminum represents the single most accessible, liquid revenue stream within PV recycling. By stripping the structural frame cleanly before the module reaches any shredder or granulator, recycling facilities keep hard, structural metal profiles out of downstream rotary cutters. This simple separation reduces downstream blade sharpening frequencies, eliminates sudden shock-loads on rotating gearboxes, and delivers sorted, extrusion-grade 6000-series aluminum directly into balers or scrap bins.
